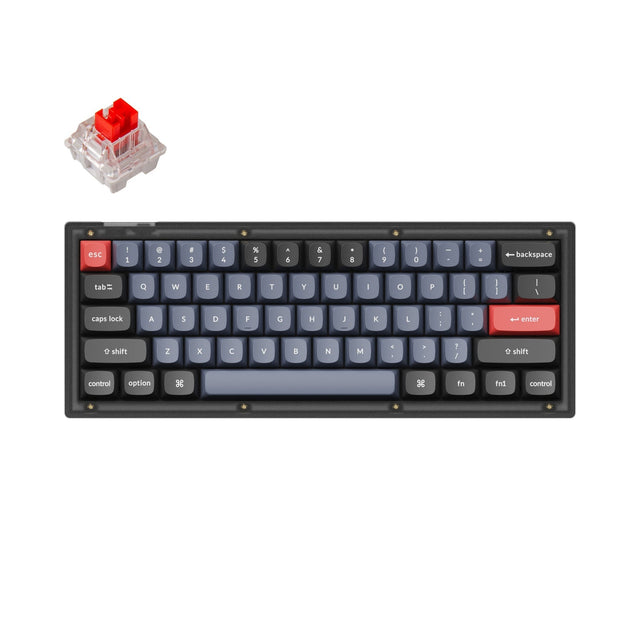

Keychron V4 QMK aangepast mechanisch toetsenbord (VS ANSI-toetsenbord)
Keychron V4 QMK aangepast mechanisch toetsenbord (VS ANSI-toetsenbord) - Volledig samengesteld / Frosted Zwart (Doorschijnend) / Keychron K Pro Rood is nabesteld en wordt verzonden zodra deze weer op voorraad is.
Kan de beschikbaarheid voor ophalen niet laden
- Behuizing van massief ABS-kunststof
- De toetsenbordprintplaat, de inschroefbare nokken en de stalen plaat
- Double-shot OSA PBT-toetsdoppen (inclusief Mac- en Windows-toetsdoppen)
- Keychron K Pro schakelaars
De barebone-versie bevat niet de toetsdoppen en schakelaars.
Voor V4 kunnen geen kortingscodes worden gebruikt.
Laat uw e-mail achter op "Houd mij op de hoogte wanneer beschikbaar" als het productmodel niet op voorraad is.
Keychron V4 QMK aangepast mechanisch toetsenbord (VS ANSI-toetsenbord)
Keychron V4
The V4 is a fully customizable mechanical keyboard suitable for different scenarios. It's an entry-level custom keyboard with a mini 60% layout, QMK/VIA support, an acoustic silicone pad, and double-shot PBT keycaps to provide you with a great typing feel and endless possibilities.
Frosted Black Version (Translucent)
Carbon Black Version (Non-transparent)
Choose the keycaps, switches and more accessories for your V4
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.
Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.
An Epic Core Inside The Keyboard
A brand new powerful ultra-low-power Arm structure MCU armed with 128K Flash will provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.
OSA Profile Double-shot PBT Keycaps
For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Switch Layouts Between macOS & Windows
Built with the Mac users' experience in mind while still retaining compatibility for Windows devices, the Keychron V4 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program with QMK & Launcher
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Hot-swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.
South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist's angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Pre-lubed Keychron K Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled V4 version fitted with factory pre-lubricated Keychron K Pro switches, a smoother travel experience is guaranteed for you.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V4 also supports third-party stabilizers, including Cherry or Durock.
Looking for ISO Layout?
The V4 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪Nordic, 🇨🇭Swiss, 🇫🇷French, and 🇪🇸 Spanish layouts.
What's in the box?
Frequently bought together (Add-on)
Please select the matching variant for your product.
Specs
| Width | 117.09 mm |
|---|---|
| Length | 303.85 mm |
| Front Height | 19.54 mm (without keycaps) |
| Back Height | 25.75 mm (without keycaps) |
| Feet Height | 2.4 mm |
| Angle | 3.5° / 8.5° / 11° |
| Weight | 730 ± 10 g (Fully Assembled Version) |
| Body Material | ABS Plastic |
| Plate | Steel |
| Polling Rate | 1000 Hz |
| Mount Style | Tray Mount Design |
| Keycaps (Fully Assembled Version) | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
|---|---|
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Backlight | South-facing RGB LED |
| Switch | Keychron K Pro (Fully Assembled Version) |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| Operating Environment | -10℃ to 50℃ |
Learn more about the Keychron V4 such as the V4 shortcuts, assembling the V4, factory reset, and more in the FAQ section.
